SIEMENS General Purpose Motor (SIMOTICS GP)

หมวดหมู่สินค้า: Electrical Motor

26 กรกฎาคม 2567

ผู้ชม 5206 ผู้ชม

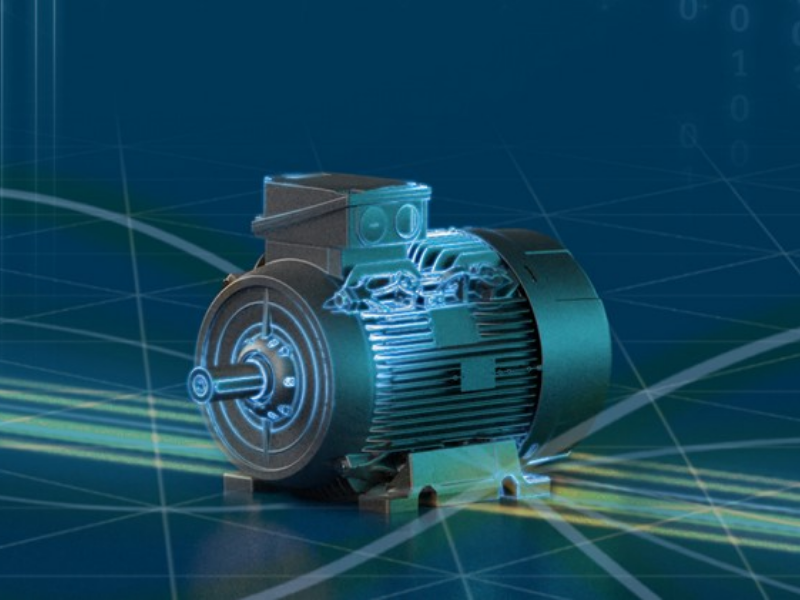

SIMOTICS GP standard motors

In addition to converter-capable line motors, two converter-optimized motor lines are available for variable-speed converter operation. For converter optimized motors you can quickly put your SIMOTICS GP motors into operation by means of a motor code for predefined converter parameters.



Grid-optimized motors

The proven SIMOTICS GP are optimized for line operation, and are available with efficiency classes up to IE4. All motors have the same power-shaft height assignment. As a consequence, there are no shaft height differences, making it easy to service or replace motors. Due to the same power-shaft height assignment across all efficiency classes, migration to more efficient motors is very easy. Grid-optimized motors can be also operated with converters.



Converter-optimized motors (Variable Speed Drive motors)

The SIMOTICS GP VSD motors are based on the platform of the SIMOTICS GP motor series. The design corresponds to the line motors – the mechanical parts are identical. The motors are adapted to the converter by appropriately dimensioning the active part and VSD-specific rating plate data. In addition, a large number of the variations available for the line motors (types of construction, motor protection, terminal box position, and options) are also available for the VSD motors.

  • Converter-optimized asynchronous motor (VSD10)

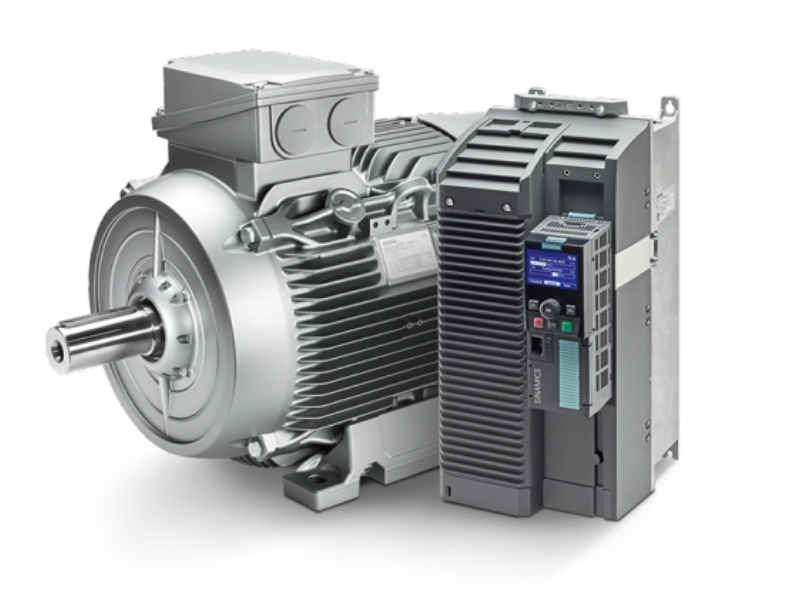

    This investment-optimized system comprising a SIMOTICS GP VSD10 motor and a SINAMICS converter permits simple selection via a catalog or engineering tool, along with fast commissioning based on a data matrix code for predefined converter parameters. Optimum matching of the motors to operational conditions on the converter results in lower system losses and thus high energy efficiency.
  • Converter-optimized synchronous reluctance motor (VSD4000)
    For particularly energy-efficient operation, the best choice is a system comprising a SIMOTICS reluctance motor and a SINAMICS converter. The reluctance technology ensures particularly high dynamic performance and high efficiencies even in the partial load range, as well as high process quality.



Your benefits at a glance

Easy to use and extremely compact

Special motor variants for special applications

Cost-effective, lightweight aluminum construction

Simply, versatile installation due to well thought-out construction



An overview of the technology


Grid-optimized motor
Converter-optimized motor (VSD10)
Converter-optimized motor (VSD4000)
Power
0,09 - 45 kW
2,2 - 15 kW
0,55 kW - 52 kW
Voltage
230 - 690 V
400 - 690 V
400 - 460 V
Shaft hight
63 - 200 mm
100 - 160 mm
80 - 200 mm
No. of poles
2 - 8
2 - 4
4
Degree of protection
IP55, IP56, IP65, IP66
Efficiency class
IE1 - IE4




Impressive solutions for your industry

SIMOTICS GP motors are perfectly suited for use in standard applications such as pumps, fans, compressors and industries HVAC, W&WW, Fiber, Food&Beverage.
